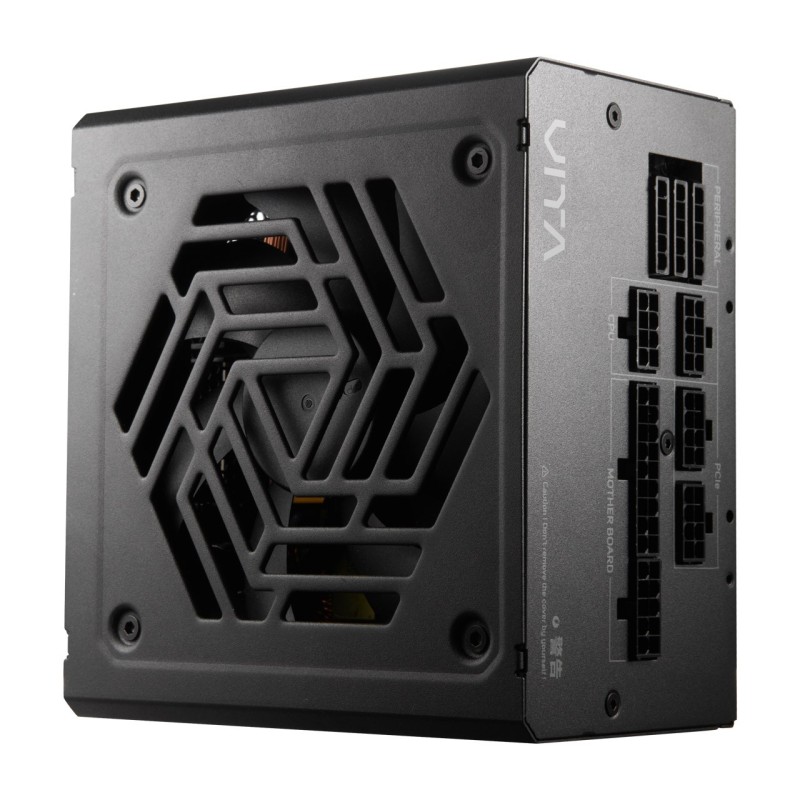

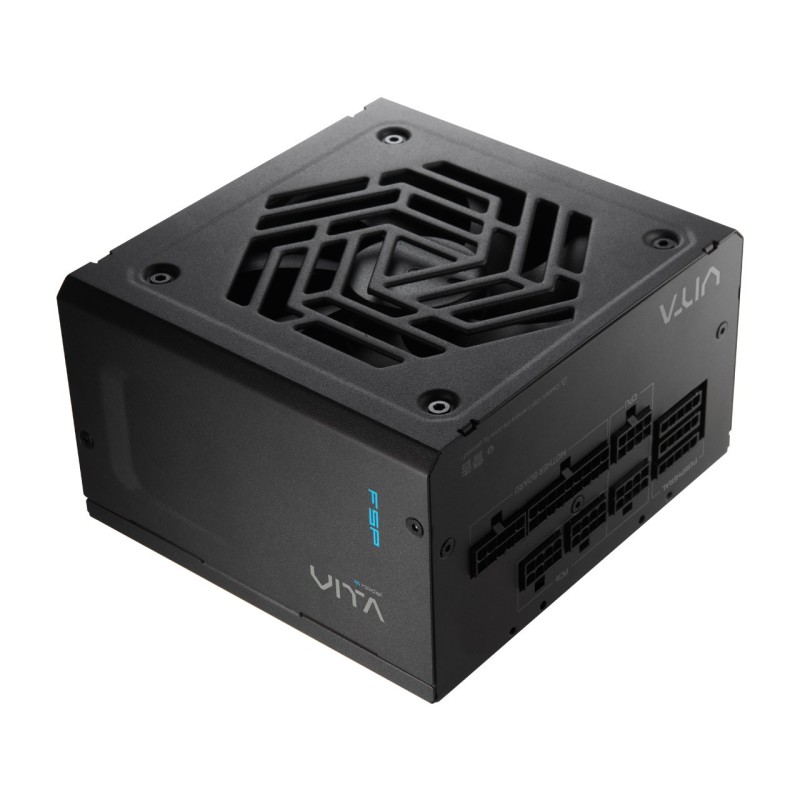

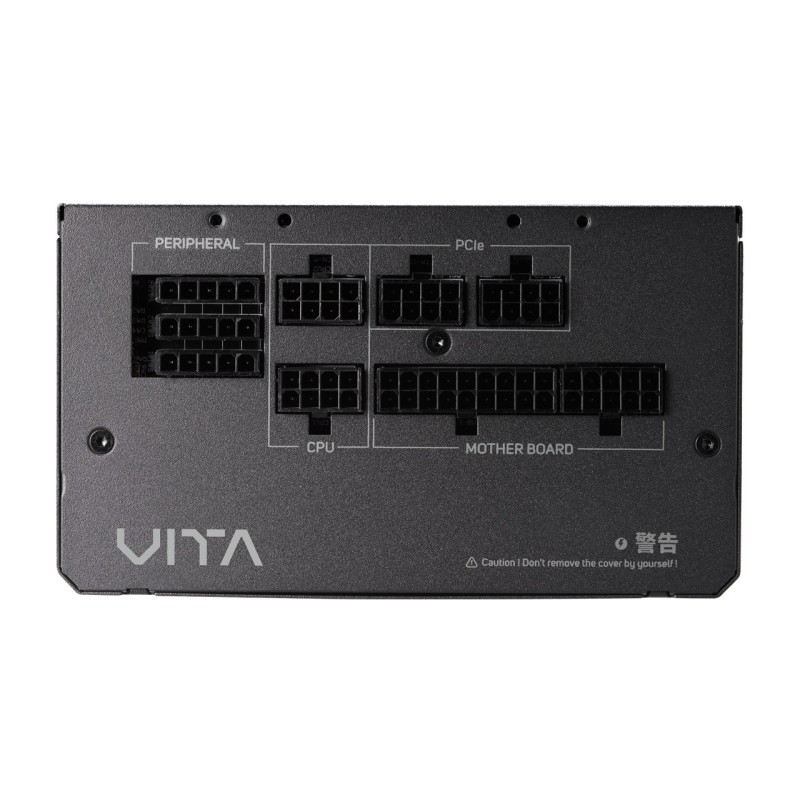

FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black
FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black
FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black
    FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black
    FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black
    FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black

FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black

kr1,480.00
Tax included

FSP VITA GM 1000W, 1000 W, 100 - 240 V, 50/60 Hz, 12-6 A, Active, 100 W

Size Chart

{"currency":"sek","content_ids":["391025-0"],"contents":[{"id":"391025-0","title":"FSP VITA GM 1000W power supply unit 20+4 pin ATX ATX Black","category":"Hem > Datorer | Elektronik > Data | N\u00e4t och Komponenter > N\u00e4taggregat","item_price":1184,"brand":"FSP"}],"content_type":"product","value":1184}
Quantity

  Säker Betalning

Del betala med Klarna

FSP VITA GM 1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 23.6" (60 cm), SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Cables included: CPU, Peripheral (Molex), SATA
Total power1000 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12-6 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)1000 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)83.33 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency90%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)4
Motherboard power cable length23.6" (60 cm)
Number of SATA power connectors8
SATA power cable length500 mm
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
CPU power cable length27.6" (70 cm)
Cabling typeFully-Modular
PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version3.1
EPS version2.92
Bearing technologyHYB
Product colorBlack
Cooling typeActive
Fan diameter4.72" (12 cm)
Number of fans1 fan(s)
Fan locationTop
Cables includedCPU, Peripheral (Molex), SATA
Width5.91" (150 mm)
Depth5.51" (140 mm)
Height3.39" (86 mm)
FSP
PPA10A4002
15 Items

Data sheet

Product color
Black
Width
5.91" (150 mm)
Depth
5.51" (140 mm)
Height
3.39" (86 mm)
Cables included
CPU, Peripheral (Molex), SATA
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Purpose
PC
Input current
12-6 A
Number of fans
1 fan(s)
Power protection features
Cooling type
Active
80 PLUS certification
80 PLUS Gold
Efficiency
90%
Fan diameter
4.72" (12 cm)
Peripheral (Molex) power connectors (4-pin)
4
Total power
1000 W
Max output current (+12V)
83.33 A
Max output current (+5Vsb)
3 A
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
Power supply unit (PSU) form factor
ATX
Bearing technology
HYB
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
1000 W
Combined power (+5V)
100 W
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Motherboard power cable length
23.6" (60 cm)
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
SATA power cable length
500 mm
CPU power cable length
27.6" (70 cm)
ATX version
3.1
Fan location
Top
EPS version
2.92
